03 ELECTRIC MOTORS
03 ELECTRIC
MOTORS
DIRECT CURRENT MOTORS

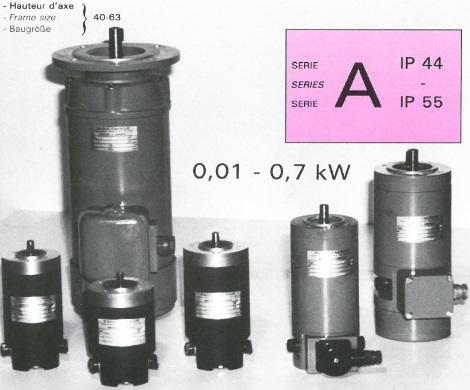

Permanent Magnet Motors
PRODUCT REFERENCE:
A Serie
APPLICATION:
- Industrial use
DESCRIPTION:
- Ferrite magnets
- Shaft size from 40 to 63
- According to IEC standards
- Voltage from 12 to 150V
- Max speed 5000 rt/mn
- Power from 10 to 700W
- IP44 et IP55
- Construction type B3, B14 or B5
- Insulation Class F
- Heating Class F
- Option: Tachymetric dynamo
- Option: Encoder
- Option: Brake

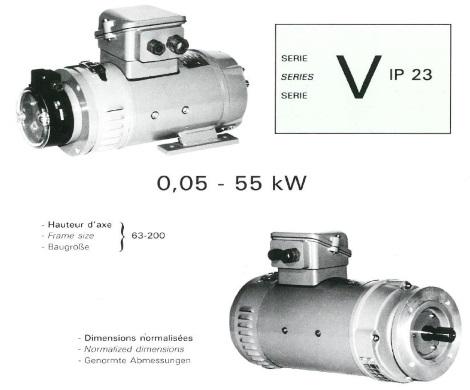

Variable Speed Motors
PRODUCT REFERENCE:
V Serie
APPLICATION:
- Industrial use
- Tough environments
DESCRIPTION:
- Shaft size from 63 to 200
- According to IEC standards
- Speed from 750 to 4000 rt/mn
- Power from 0.05 to 55 kW
- IP23
- Mounting type B3, B5 or B35
- Insulation Class F
- Heating Class F
- Service type S1
- Ambient temperature 40°C
- Option: Tachymetric dynamo
- Option: Encoder
- Option: Brake
- To be defined when ordering: armature voltage, excitation voltage and armature voltage form factor

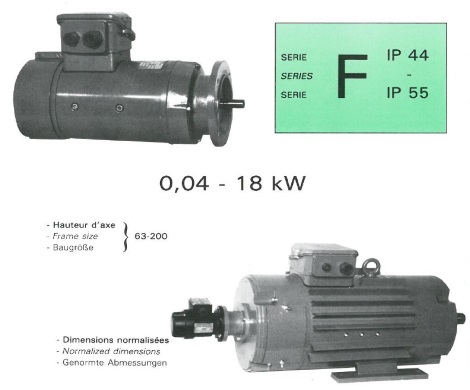

Variable Speed Motors
PRODUCT REFERENCE:
F Serie
APPLICATION:
- Industrial use
- Tough environments
DESCRIPTION:
- Shaft size from 63 to 200
- According to IEC standards
- Speed from 750 to 3000 rt/mn
- Power from 0.04 to 18kW
- IP44 and IP55
- Mounting type B3, B5 or B35
- Insulation Class F
- Heating Class F
- Service type S1
- Ambient temperature 40°C
- Option: Tachymetric dynamo
- Option: Encoder
- Option: Brake
- To be defined when ordering: armature voltage, excitation voltage and armature voltage form factor

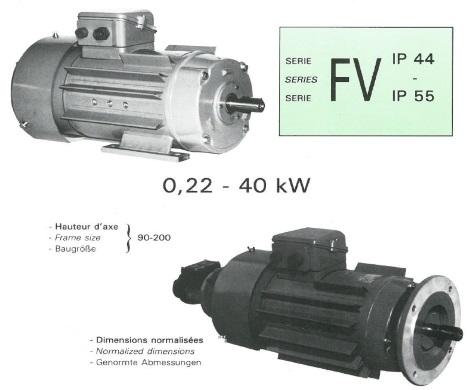

Variable Speed Motors
PRODUCT REFERENCE:
FV Serie
APPLICATION:
- Industrial use
- Tough environments
DESCRIPTION:
- Shaft size from 90 to 200
- According to IEC standards
- Speed from 750 to 3000 rt/mn
- Power from 0.22 to 40kW
- IP44 and IP55
- Mounting type B3, B5 or B35
- Insulation Class F
- Heating Class F
- Service type S1
- Ambient temperature 40°C
- Option: Tachymetric dynamo
- Option: Encoder
- Option: Brake
- To be defined when ordering: armature voltage, excitation voltage and armature voltage form factor

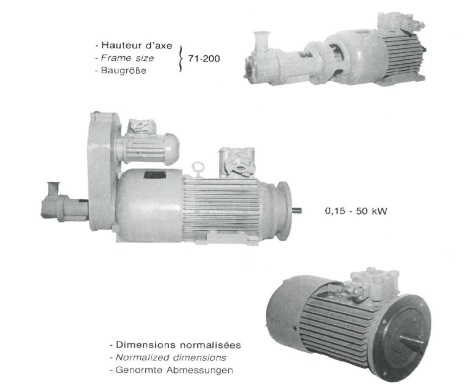

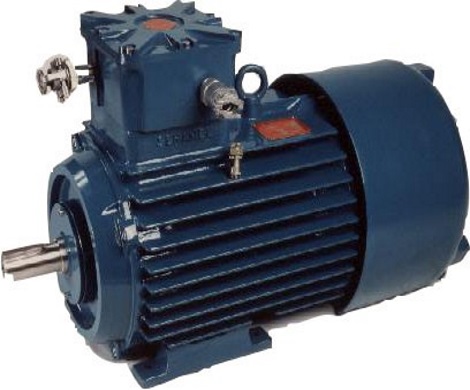

SERAMEL Motors
PRODUCT REFERENCE:
S Serie
APPLICATION:
- Secured zone
- ATEX certification according to 2014/34/UE directive for ATEX zone use
- Possibility to repair ATEX motors according to Saqr-ATEX
DESCRIPTION:
- Our motors are conceived according to CENELEC European standards, and designed to offer safety and reliability high level
- Shaft size from 71 to 160
- Temperature class T4 (135°C) and T5 (100°C)
- Ambient temperature from -20°C to +80°C
- Motor design including compensated poles: 2 or 4
- IP44 and IP55
- Cooling IC 0141
- Cast iron element (except S71 range: Aluminium)
- Mounting type B3, B14, B5, B35 and V1
- Battery power supply: 24V, 48V, 110V and 220V
- Variator power supply: 230V-50Hz or 400V - 50Hz
- Excitation type: separated, shunt, series or compound
- Service type S1
- Form factor: Ff1
- Insulation Class F
- Heating Class F
- Power from 0.130 to 20 kW
Permanent Magnet Motors
PRODUCT REFERENCE:
A Serie
APPLICATION:
- Industrial use
DESCRIPTION:
- Ferrite magnets
- Shaft size from 40 to 63
- According to IEC standards
- Voltage from 12 to 150V
- Max speed 5000 rt/mn
- Power from 10 to 700W
- IP44 et IP55
- Construction type B3, B14 or B5
- Insulation Class F
- Heating Class F
- Option: Tachymetric dynamo
- Option: Encoder
- Option: Brake
Variable Speed Motors
PRODUCT REFERENCE:
V Serie
APPLICATION:
- Industrial use
- Tough environments
DESCRIPTION:
- Shaft size from 63 to 200
- According to IEC standards
- Speed from 750 to 4000 rt/mn
- Power from 0.05 to 55 kW
- IP23
- Mounting type B3, B5 or B35
- Insulation Class F
- Heating Class F
- Service type S1
- Ambient temperature 40°C
- Option: Tachymetric dynamo
- Option: Encoder
- Option: Brake
- To be defined when ordering: armature voltage, excitation voltage and armature voltage form factor
Variable Speed Motors
PRODUCT REFERENCE:
F Serie
APPLICATION:
- Industrial use
- Tough environments
DESCRIPTION:
- Shaft size from 63 to 200
- According to IEC standards
- Speed from 750 to 3000 rt/mn
- Power from 0.04 to 18kW
- IP44 and IP55
- Mounting type B3, B5 or B35
- Insulation Class F
- Heating Class F
- Service type S1
- Ambient temperature 40°C
- Option: Tachymetric dynamo
- Option: Encoder
- Option: Brake
- To be defined when ordering: armature voltage, excitation voltage and armature voltage form factor
Variable Speed Motors
PRODUCT REFERENCE:
FV Serie
APPLICATION:
- Industrial use
- Tough environments
DESCRIPTION:
- Shaft size from 90 to 200
- According to IEC standards
- Speed from 750 to 3000 rt/mn
- Power from 0.22 to 40kW
- IP44 and IP55
- Mounting type B3, B5 or B35
- Insulation Class F
- Heating Class F
- Service type S1
- Ambient temperature 40°C
- Option: Tachymetric dynamo
- Option: Encoder
- Option: Brake
- To be defined when ordering: armature voltage, excitation voltage and armature voltage form factor
SERAMEL Motors
PRODUCT REFERENCE:
S Serie
APPLICATION:
- Secured zone
- ATEX certification according to 2014/34/UE directive for ATEX zone use
- Possibility to repair ATEX motors according to Saqr-ATEX
DESCRIPTION:
- Our motors are conceived according to CENELEC European standards, and designed to offer safety and reliability high level
- Shaft size from 71 to 160
- Temperature class T4 (135°C) and T5 (100°C)
- Ambient temperature from -20°C to +80°C
- Motor design including compensated poles: 2 or 4
- IP44 and IP55
- Cooling IC 0141
- Cast iron element (except S71 range: Aluminium)
- Mounting type B3, B14, B5, B35 and V1
- Battery power supply: 24V, 48V, 110V and 220V
- Variator power supply: 230V-50Hz or 400V - 50Hz
- Excitation type: separated, shunt, series or compound
- Service type S1
- Form factor: Ff1
- Insulation Class F
- Heating Class F
- Power from 0.130 to 20 kW
Do you want more precision? Contact us!
RADIO ENERGY IS RECOGNIZED WORLDWIDE FOR THE QUALITY AND RELIABILITY OF ITS PRODUCTS IN THE ELECTRICAL FIELD.
ITS THREE MAIN PRODUCT LINES ARE:
— Dynamos, tachymetric alternators, digital encoders;
— Direct current motors;
— Permanent magnet generators and alternators (PMG) for various energy applications including wind power.
Radio Energie offers a wide range of speed sensors that equip all types of industrial equipment worldwide (70% for export), such as elevators, lifting cranes, mechanical elevators, rolling mills, material processing industry...
