02 PERMANENT MAGNET GENERATORS (PMG)
RADIO-ENERGIE is a leading supplier of permanent magnet generators (PMGs) to major European manufacturers of large generators and synchronous motors. These PMGs have been developed to provide excitation power supplies for the excitation field systems of large rotating machines operating at continuous speeds up to a maximum of 5000 rpm.
RADIO-ENERGIE has produced permanent magnet generators for a variety of applications, including oil, gas and hydropower. Our PMGs can be used as stand-alone power supplies or as brushless excitation power supplies for the field system of large rotating machines. The magnets used in our PMGs can be either AlNiCo or rare-earth Samarium Cobalt. Rare-earth magnets are now our preferred choice, as they enable us to reduce the size of the PMG and are extremely resistant to demagnetization in the event of a short-circuit fault.
We have manufactured PMGs for large multinational companies, such as GE, ABB and NIDEC, as well as for smaller companies requiring more customized solutions. All our PMGs are designed and manufactured according to customer requirements, operating at a specified output power, voltage, power factor and speed.
Our PMGs are impregnated with epoxy resin. Class F insulation is used as standard in all our PMGs, which can withstand temperatures up to 155°C, with higher-temperature insulation available if required.
Our PMGs can be supplied either fully enclosed, as separate rotor and stator, or as a floating hollow-shaft assembly. Mountings available include base, skirt, flange or shaft-mounted coupling and, in the case of a fully enclosed PMG, we will work to the desired IP rating.
All our PMGs undergo dynamic balancing and dynamic and static testing. Standard tests include open circuit and load voltage checks, overspeed, overvoltage and flash tests, as well as insulation and winding resistance measurements, with type tests available on request.
OUR SECTORS
Energy production
Petroleum gas
Renewable energy
Submarine
Military
Marine
OPTIONS & ADVANTAGES
RADIO-ENERGIE manufactures a wide range of permanent magnet generators in a variety of speeds and sizes to suit all applications. Custom design solutions are our specialty.
OUR CATALOGUE
IEC MOUNT
PMG - IEC
APPLICATION:
- Normalized machine
- Master key solution
- Very common product
DESCRIPTION:
- Single phase or 3-phases
- Voltage below or equal to 500V
- Electrical power below or equal to 60 kVA
- Frequency below or equal to 400Hz
- Power factor (Cos φ) between 0 and 1
- Distortion below or equal to 5%
- Speed below or equal to 5000 rt/mn
- Possibility to design some PMG dedicated to principal generators 50 Hz & 60 Hz
- IP 44 or IP 55
- Insulation Class F
- Heating class F or B: 100K or 80 K
- Ambient temperature: 40°C or else
PMG - IEC
APPLICATION:
- Normalized machine
- Master key solution
- Very common product
DESCRIPTION:
- Single phase or 3-phases
- Voltage below or equal to 500V
- Electrical power below or equal to 60 kVA
- Frequency below or equal to 400Hz
- Power factor (Cos φ) between 0 and 1
- Distortion below or equal to 5%
- Speed below or equal to 5000 rt/mn
- Possibility to design some PMG dedicated to principal generators 50 Hz & 60 Hz
- IP 44 or IP 55
- Insulation Class F
- Heating class F or B: 100K or 80 K
- Ambient temperature: 40°C or else
FLOATING MOUNT

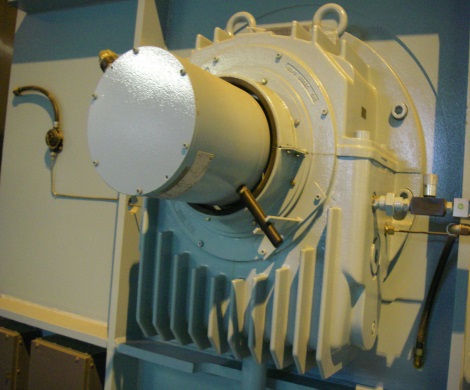

PMG - MF
PRODUCT REFERENCE:
Plate solution
APPLICATION:
- Applicable solution if turbine drive
- Key master machine
- Customer’s shaft directly adapted and mounted on PMG flange
- Closed plates machine
- Anti-rotate shaft blocks PMG rotation
DESCRIPTION:
- Single phase or 3-phases
- Voltage below or equal to 500V
- Power below or equal to 60 kVA
- Frequency below or equal to 400Hz
- Power factor (Cos φ) between 0 and 1
- Distortion below or equal to 5%
- Speed below or equal to 5000 rt/mn
- Possibility to design some PMG dedicated to principal generators 50 Hz & 60 Hz
- IP 44 or IP 55
- Insulation Class F
- Heating class F or B: 100K or 80 K
- Ambient temperature: 40°C or else

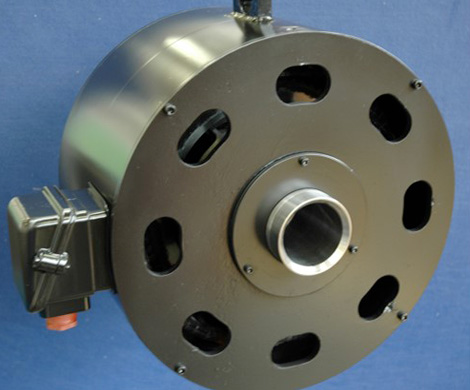

PMG - MF
PRODUCT REFERENCE:
Hollow shaft solution
APPLICATION:
- This machine is directly mounted on the customer’s machine shaft
- Bearings less solicited as PMG stands on customer’s shaft
DESCRIPTION:
- Single or 3-phases
- Voltage below or equal to 500V
- Power below or equal to 60 kVA
- Frequency below or equal to 400Hz
- Power factor (Cos φ) between 0 and 1
- Distorsion below or equal to 5%
- Speed below or equal to 5000 rt/mn
- Possibility to design some PMG dedicated to principal generators 50 Hz & 60 Hz
- IP 00
- Insulation Class F
- Heating class F or B: 100K or 80 K
- Ambient temperature: 40°C or else
PMG - MF
PRODUCT REFERENCE:
Plate solution
APPLICATION:
- Applicable solution if turbine drive
- Key master machine
- Customer’s shaft directly adapted and mounted on PMG flange
- Closed plates machine
- Anti-rotate shaft blocks PMG rotation
DESCRIPTION:
- Single phase or 3-phases
- Voltage below or equal to 500V
- Power below or equal to 60 kVA
- Frequency below or equal to 400Hz
- Power factor (Cos φ) between 0 and 1
- Distortion below or equal to 5%
- Speed below or equal to 5000 rt/mn
- Possibility to design some PMG dedicated to principal generators 50 Hz & 60 Hz
- IP 44 or IP 55
- Insulation Class F
- Heating class F or B: 100K or 80 K
- Ambient temperature: 40°C or else
PMG - MF
PRODUCT REFERENCE:
Hollow shaft solution
APPLICATION:
- This machine is directly mounted on the customer’s machine shaft
- Bearings less solicited as PMG stands on customer’s shaft
DESCRIPTION:
- Single or 3-phases
- Voltage below or equal to 500V
- Power below or equal to 60 kVA
- Frequency below or equal to 400Hz
- Power factor (Cos φ) between 0 and 1
- Distorsion below or equal to 5%
- Speed below or equal to 5000 rt/mn
- Possibility to design some PMG dedicated to principal generators 50 Hz & 60 Hz
- IP 00
- Insulation Class F
- Heating class F or B: 100K or 80 K
- Ambient temperature: 40°C or else

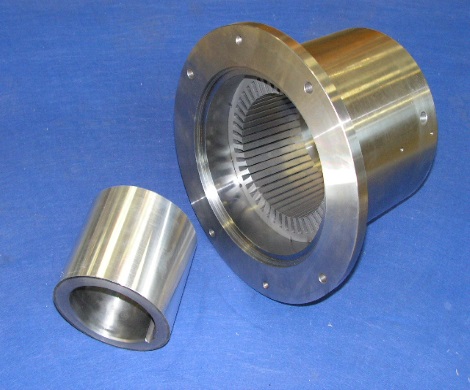

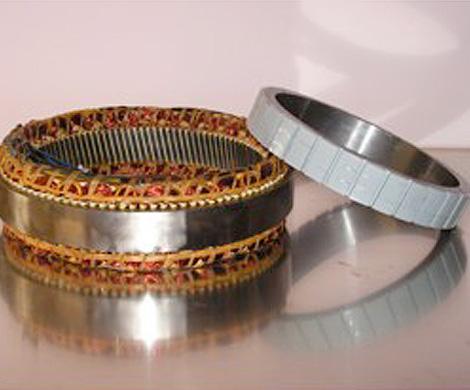

ROTOR/STATOR MOUNT
PMG R/S
APPLICATION:
- Stripped but intelligent solution adapted to the customer’s mechanical reality
- Customized mechanics allowing high power condition
- Adaptation directly on the customer’s mechanical support
- Solution fitting with a diesel drive as withstanding vibrations
- Adapted solution for ALNICO magnet use
DESCRIPTION:
- Single phase or 3-phases
- Voltage below or equal to 500V
- Power below or equal to 60 kVA
- Frequency below or equal to 400Hz
- Power factor (Cos φ) between 0 and 1
- Distortion below or equal to 5%
- Speed below or equal to 5000 rt/mn
- Possibility to design some PMG dedicated to principal generators 50 Hz & 60 Hz
- IP 00
- Insulation Class F
- Heating class F or B: 100K or 80 K
- Ambient temperature: 40°C or else
PMG R/S
APPLICATION:
- Stripped but intelligent solution adapted to the customer’s mechanical reality
- Customized mechanics allowing high power condition
- Adaptation directly on the customer’s mechanical support
- Solution fitting with a diesel drive as withstanding vibrations
- Adapted solution for ALNICO magnet use
DESCRIPTION:
- Single phase or 3-phases
- Voltage below or equal to 500V
- Power below or equal to 60 kVA
- Frequency below or equal to 400Hz
- Power factor (Cos φ) between 0 and 1
- Distortion below or equal to 5%
- Speed below or equal to 5000 rt/mn
- Possibility to design some PMG dedicated to principal generators 50 Hz & 60 Hz
- IP 00
- Insulation Class F
- Heating class F or B: 100K or 80 K
- Ambient temperature: 40°C or else
Do you want more precision? Contact us!
RADIO ENERGY IS RECOGNIZED WORLDWIDE FOR THE QUALITY AND RELIABILITY OF ITS PRODUCTS IN THE ELECTRICAL FIELD.
ITS THREE MAIN PRODUCT LINES ARE:
— Dynamos, tachymetric alternators, digital encoders;
— Direct current motors;
— Permanent magnet generators and alternators (PMG) for various energy applications including wind power.
Radio Energie offers a wide range of speed sensors that equip all types of industrial equipment worldwide (70% for export), such as elevators, lifting cranes, mechanical elevators, rolling mills, material processing industry...
